最高使用溫度

Maximum service temperature

1280度（℃）

可長期使用溫度

Can be used for a long time temperature

1250度（℃）

控制范圍為

Control range is

80-1200度（℃）

測溫元件

Temperature measuring element

熱電偶分度號K,測溫范圍0-1320度

Thermocouple index number K, temperature range 0-1320 degrees

發熱元件裝位置

Location of heating element

四周布置發熱元件

Heating elements are arranged around

控溫精度

Temperature control accuracy

±1度（集成化電路控制，無超調現象）

±1 degree (integrated circuit control, no overshoot)

爐溫均勻性

Furnace temperature uniformity

±5度（℃）

升溫速率

Heating rate

升溫速率可自由調節，調節范圍：最快升溫速率每分鐘30度（30度/min）、最慢升溫速率每小時1度（1度/h）

The heating rate can be freely adjusted, the adjustment range: the fastest heating rate is 30 degrees per minute (30 degrees /min), the slowest heating rate is 1 degree per hour (1 degree /h).

發熱元件

Heating element

采用U型等直徑硅碳棒，硅碳棒是選用高純度a-SiC為主要原料制成的非金屬高溫電熱元件，它具有升溫快、熱效率高、壽命長、高溫下不易變形，安裝操作維修簡便、溫度可達1500度等特點。Silicon carbon rod is used as heating element. U-shaped silicon carbon rod with equal diameter, silicon carbon rod is a high-purity A-sic as the main raw material made of non-metallic high-temperature electric heating element, it has fast heating, high thermal efficiency, long life, not easy to deformation at high temperature, easy installation, operation and maintenance, temperature up to 1500 degrees.

爐體

Furnace body

爐體采用數控機床加工，經拋光、打磨、酸洗、磷化、噴涂塑粉、高溫烘烤等制作而成，雙色搭配，外觀新穎美觀，具備了抗氧化、耐酸堿、耐腐蝕、耐高溫、容易清理等優點

The furnace body is processed by CNC machine tool, and is made by polishing, polishing, pickling, phosphating, spraying plastic powder, high temperature baking, etc. The two-color combination has a novel and beautiful appearance, and has the advantages of oxidation resistance, acid and alkali resistance, corrosion resistance, high temperature resistance, and easy cleaning

爐體結構

Furnace structure

電爐爐體采用了先進的風冷雙層爐體結構，有效的風冷導向隔板使?fàn)t殼整體冷風循環，最終冷卻發熱元件導電片后排出爐體，避免了發熱元件導電片的高溫氧化；保證了良好的工作環境

The electric furnace adopts the international advanced air-cooled double-layer furnace structure, and the effective air-cooled guide partition circulates the whole cold air of the furnace shell, and finally cools the conductive sheet of the heating element and exits the furnace body, avoiding the high-temperature oxidation of the conductive sheet of the heating element. Ensure a good working environment

爐體升降

Furnace body lifting

爐體的升降采用雙油缸液壓升降，液壓系統并且具備了停電后手動下降按鈕，和升起時防止下降機械鎖定安全扣。The lifting of the furnace body adopts double cylinder hydraulic lifting, and the hydraulic system is equipped with a manual lowering button after power failure, and a mechanical locking safety buckle to prevent falling when rising

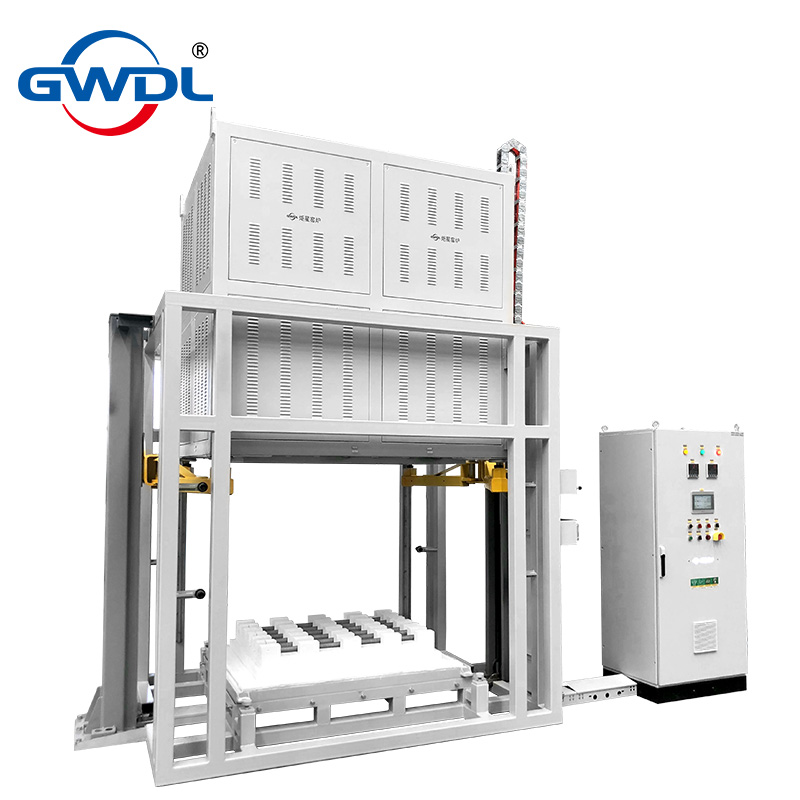

裝料臺與爐口結合

The loading table is combined with the furnace

爐體開啟方式為上爐體垂直升降；裝料臺與爐口有3-4層錐度臺階軟密封，臺階上布置有彈性高溫密封條，能有效的吸收爐口與裝料臺耐火材料的膨脹；并在裝料臺四周設置有密封沙結構。The opening mode of the furnace body is vertical lifting of the upper furnace body; There are 3-4 layers of taper step soft seal between the charging platform and the loading platform. The elastic high temperature seal strip is arranged on the step, which can effectively absorb the expansion of the refractory materials of the charging platform and the furnace. And a sealing sand structure is arranged around the loading table

裝料臺耐材

Loading table resistant material

裝料臺采用真空成型高純氧化鋁聚輕材料與高純氧化鋁空心球板組合制作而成，既保證了保溫性能又保證了承重性能。

The charging table is made of vacuum forming high purity alumina poly light material and high purity alumina hollow ball plate, which not only ensures the heat preservation performance but also ensures the load-bearing performance

爐膛耐火材料

Furnace refractory

爐襯使用真空成型高純氧化鋁聚輕材料制作而成，取放物料易碰和載重位置（爐口、爐底）采用輕質空心球氧化鋁板，使用溫度高，蓄熱量小，耐急熱急冷、不裂縫、不掉渣、保溫性能好（節能效果是老式電爐的80%以上）The lining of the furnace is made of vacuum forming high-purity aluminum oxide polymer material, the material is easy to touch and the load position (furnace mouth, furnace bottom) is made of lightweight aluminum oxide plate, the use of high temperature, small heat storage, resistance to urgent heating and cooling, no cracks, no slag, good thermal insulation performance (energy-saving effect is more than 80% of the old electric furnace).

保溫材料

Thermal insulation material

采用三層保溫，分別為：硅酸鋁纖維板、氧化鋁纖維板、氧化鋁（多晶）纖維板，節能效果是老式電爐的80%以上。

The use of three layers of insulation, respectively: aluminum silicate fiberboard, alumina fiberboard, alumina (polycrystalline) fiberboard, energy saving effect is more than 80% of the old electric furnace.

爐體外殼溫度

Furnace shell temperature

長期使用不停爐，外殼溫度小于45度

Long-term use of non-stop furnace, shell temperature is less than 45 degrees

保護Protection

采用集成化模塊控制單元，控制精度準確，并設計了雙回路控制和雙回路保護，具備了過沖、超調、欠調、段偶、缺相、超壓、超流、超溫、電流反饋、軟啟動等保護

The integrated module control unit is adopted, the control precision is accurate, and the double circuit control and double circuit protection are designed, with overshoot, overshoot, undershoot, segment pair, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start and other protection

控制

Controls

采用閉環技術可控硅模塊觸發控制，移相觸發控制或者過零觸發方式，輸出電壓、電流或功率連續可調，具有恒電壓、恒電流或恒功率的特性；電流環為內環，電壓環為外環，在突加負載或負載電流超過限流值時，限制調壓器的輸出電流在額定電流范圍內，確保輸出和調壓器正常工作；同時電壓環也參與調節，使調壓器的輸出電流被限制在額定電流范圍內，在有充分調節余量的前提下維持輸出電流及電壓的恒定；從而到達保護發熱元件避免過大電流、電壓的沖擊，達到安全可靠的控制效果及控制精度。Use closed-loop technology thyristor module trigger control, phase-shift trigger control or zero-crossing trigger mode, the output voltage, current or power is continuously adjustable, with constant voltage, constant current or constant power characteristics; The current ring is the inner ring and the voltage ring is the outer ring. When the load is suddenly added or the load current exceeds the current limit value, the output current of the voltage regulator is limited to the rated current range to ensure that the output and voltage regulator work normally. At the same time, the voltage ring is also involved in the regulation, so that the output current of the regulator is limited within the rated current range, and the output current and voltage are maintained under the premise of sufficient adjustment margin. Thus to protect the heating element from excessive current and voltage impact, to achieve safe and reliable control effect and control accuracy.

觸摸屏讀寫參數

Touch screen read and write parameters

采用7英寸觸摸屏?xí)r實讀寫儲存溫度、溫度段號、段時間、剩余時間、輸出功率百分比、電壓、電流等

When the 7-inch touch screen is used, the real read and write storage temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc

溫度曲線設定

Temperature curve setting

采用導電FP03智能溫度控制儀，備標準PID、人工智能調節APID或MPT等多種調節方式，具有自整定、自學習功能，無超調及無欠調的優良控制特性，具備40段程序控制功能，可實現任意斜率的升、降溫控制，具有跳轉（循環）、運行、暫停及停止等可編程/可操作命令，并允許在程序的控制運行中隨時修改程序；采用具備曲線擬合功能的人工智能調節算法，能獲得光滑平順的曲線控制效果；

Using Japan's conductive FP03 intelligent temperature controller, standard PID, artificial intelligence to adjust APID or MPT and other adjustment methods, with self-tuning, self-learning function, no overshoot and no undermodulation of excellent control characteristics, with 40 segment program control function, can achieve any slope of rise and drop temperature control. It has programmable/operable commands such as jump (loop), run, pause and stop, and allows modification of the program at any time during the control operation of the program; Using artificial intelligence adjustment algorithm with curve fitting function, smooth curve control effect can be obtained.

隨機配件Spare parts

發熱原件兩支、棒具兩套。 Two heating components and two sets of rods

保修范圍及期限Warranty coverage and duration

電爐免費保修一年，發熱元件不保修（三個月內自然損壞免費更換）Electric furnace free warranty for one year, heating components are not guaranteed (free replacement of natural damage within three months)

裝箱清單

Packing list

電爐一臺，發熱原件兩支、棒具兩套，高溫手套一副，說明書一份，合格證一份，驗收?qǐng)?bào)告（出廠檢測報告）一份，銷售送貨單一份。One electric furnace, two heating components, two sets of rods, one pair of high temperature gloves, one manual, one certificate, one acceptance report (factory inspection report), and one sales delivery.

發貨事項

Delivery item

木箱包裝，汽車、鐵路、輪船（外貿出口）、空運（外貿出口）運輸 Packed in wooden cases, transported by car, rail, ship (export), air (export)

鐘罩爐

GWL-1200YS1100/800/1100

W1100×D800×H1100

AC380V,50HZ

80

21000
